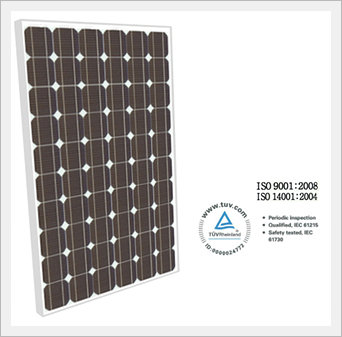

Kyung Won is committed to supply the best quality of TUV certified photovoltaic modules. Our strongest team of R&D strives to provide our customers with excellent performance of superior products and ISO9001/1401 Certified manufacturing facility guarantees to supply most reliable quality of products.
Feature
- Certified TUV Rheinland(IEC 61215 and IEC 61730)
- Certified with ISO9001 & ISO14001
- Long term stability with 25 year limited warranty
- Selective components to achieve highest quality
 More Information
Electrical Specifications
|
Multi-Crystalline(M54 series)
|
STC : Irradiance 1000W/m2 AM =1.5 Module Temperature 25°C
|
|
Characteristics
|
Unit
|
190
|
195
|
200
|
205
|
210
|
215
|
220
|
225
|
230
|
|
Rated Power at STC (Pmax)
|
W
|
190
|
195
|
200
|
205
|
210
|
215
|
220
|
225
|
230
|
|
Max. Power Voltage (Vmp)
|
V
|
24.8
|
25.3
|
25.6
|
25.9
|
26.5
|
27
|
27.3
|
28.3
|
29.2
|
|
Max. Power Current(Imp)
|
A
|
7.67
|
7.73
|
7.85
|
7.91
|
7.93
|
7.98
|
8.08
|
7.98
|
7.93
|
|
Open Circuit Voltage(Voc)
|
V
|
32.8
|
32.9
|
33.1
|
33.2
|
33.9
|
37.1
|
34.5
|
34.9
|
37.1
|
|
Short Circuit Current(Isc)
|
A
|
8.45
|
8.47
|
8.47
|
8.47
|
8.52
|
8.54
|
8.65
|
8.54
|
8.52
|
|
No. of Cells
|
PCS
|
54(6x9) Cells connected in Series
|
|
Maximum System Voltage
|
V
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Maximum Series Fuse Rating
|
A
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
|
Operation Temperature
|
°C
|
-40 to +90
|
|
Multi-Crystalline(M60 series)
|
STC : Irradiance 1000W/m2 AM =1.5 Module Temperature 25°C
|
|
Characteristics
|
Unit
|
210
|
215
|
220
|
225
|
230
|
235
|
240
|
245
|
250
|
|
Rated Power at STC (Pmax)
|
W
|
210
|
215
|
220
|
225
|
230
|
235
|
240
|
245
|
250
|
|
Max. Power Voltage (Vmp)
|
V
|
26.5
|
27
|
27.3
|
28.3
|
29.2
|
29.5
|
29.8
|
30.1
|
30.4
|
|
Max. Power Current(Imp)
|
A
|
7.93
|
7.98
|
8.08
|
7.98
|
7.93
|
7.96
|
8.08
|
8.14
|
8.23
|
|
Open Circuit Voltage(Voc)
|
V
|
33.9
|
34.1
|
34.5
|
34.9
|
37.1
|
37.3
|
37.6
|
37.9
|
38.1
|
|
Short Circuit Current(Isc)
|
A
|
8.52
|
8.54
|
8.65
|
8.54
|
8.52
|
8.61
|
8.65
|
8.75
|
8.91
|
|
No. of Cells
|
PCS
|
60(6x10) Cells connected in Series
|
|
Maximum System Voltage
|
V
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Maximum Series Fuse Rating
|
A
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
|
Operation Temperature
|
°C
|
-40 to +90
|
Dimensions Specifications(unit:mm)
|

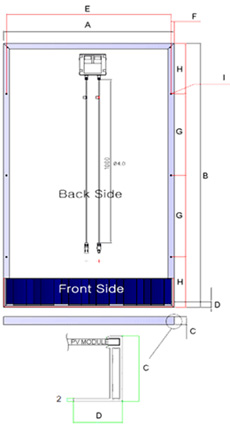

Module Diagram
|
No. of Cells
|
54(6x9)
|
60(6x10)
|
 |
A(Width)
|
979
|
979
|
|
B(Length)
|
1484
|
1642
|
|
C(Thickness)
|
38
|
38
|
|
D
|
28
|
28
|
|
E
|
944
|
944
|
|
F
|
17.5
|
17.5
|
|
G
|
500
|
500
|
|
H
|
242
|
321
|
|
I(Mounting & Grounding Hole)
|
Ø8
|
Ø8
|
| Temperature Cefficients
|
|
Nominal Operating Cell Temp. (NOCT)
|
47°C
|
|
The coefficient of Pmax
|
-0.405±0.05%/°C
|
|
The coefficient of Voc
|
-0.312±0.015%/°C
|
|
The coefficient of Isc
|
+0.075±0.015%/°C
|
|
|
|
|
|
|
| |
|
|
|
